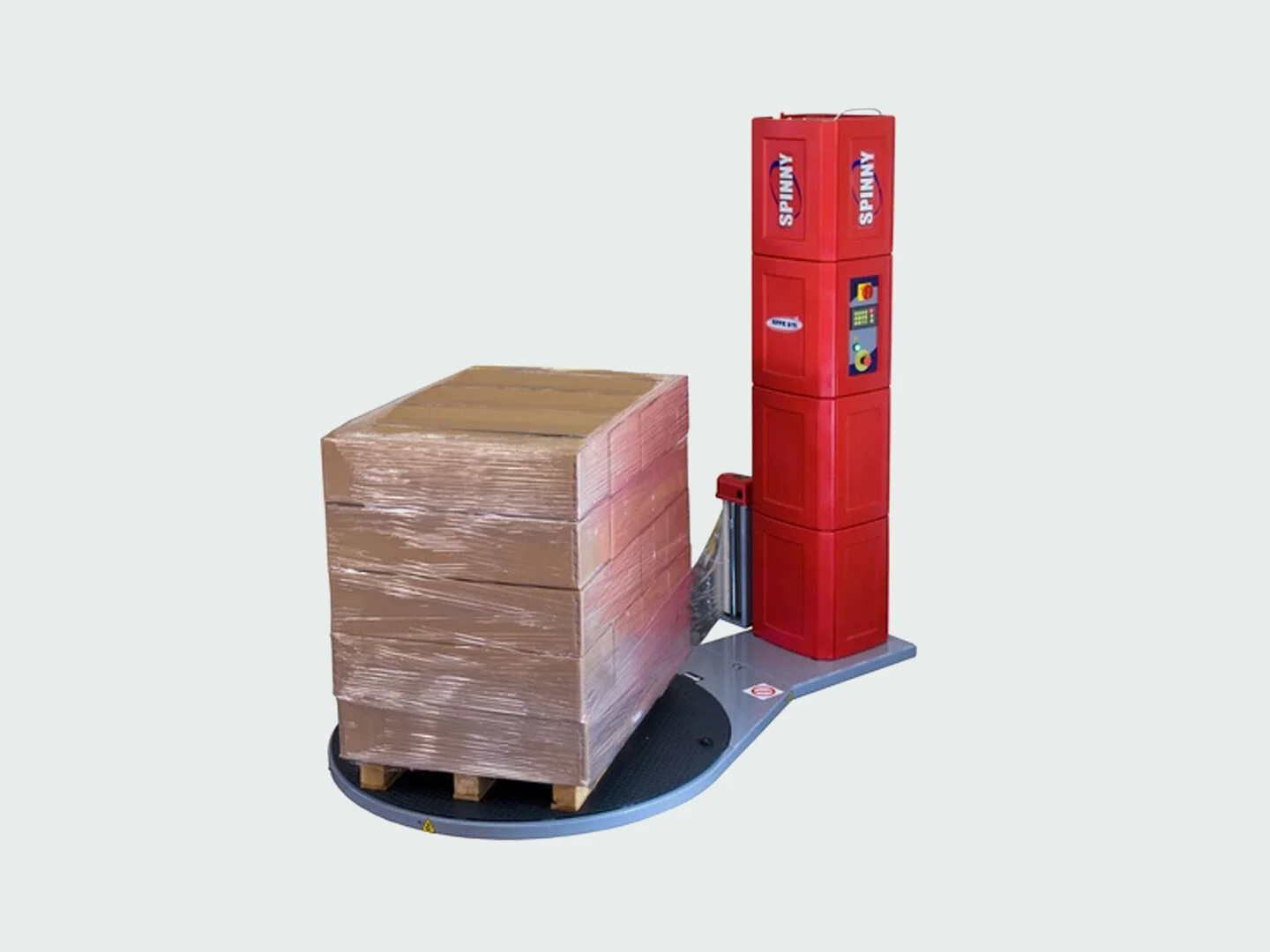

The SPINNY S140 Pallet Wrapper



This is our semi-automatic wrapping machine with mechanical or electromagnetic film tensioning. It includes separate programming of top and bottom reinforcement wraps and a completely customizable variable speed of film carrier. This machine has an electronic control panel with options for a simple wrapping cycle, a double wrapping cycle with top sheet and a manual wrapping cycle.



Wrapping Height

Up to 2100 mm detected by photocell



Distance between column and rotating table

500 mm



Rotating Table Diameter

1500 mm load 1200 kg



Tension

230V-50Hz



Key Features

  • Mechanical brake (mod. PLUS) or electromagnetic brake (mod. ADVANCED) film tensioning

  • Table rotation regulated by variable frequency drive from 5 to 10 rpm

  • Sensor controlled rotation stop

  • Film carrier fall protection system

  • Independent top and bottom turns

  • Manual film carrier stop for reinforcement wrapping turns.



Optional Features

  • Smart Touch control panel with 4 customizable working programs

  • Rotating table capacity up to 2000 kg and diameter up to 2200 mm

  • Pallet height up to 3100 mm
